AEON Ausverkauf, Verkauf nur solange Vorrat

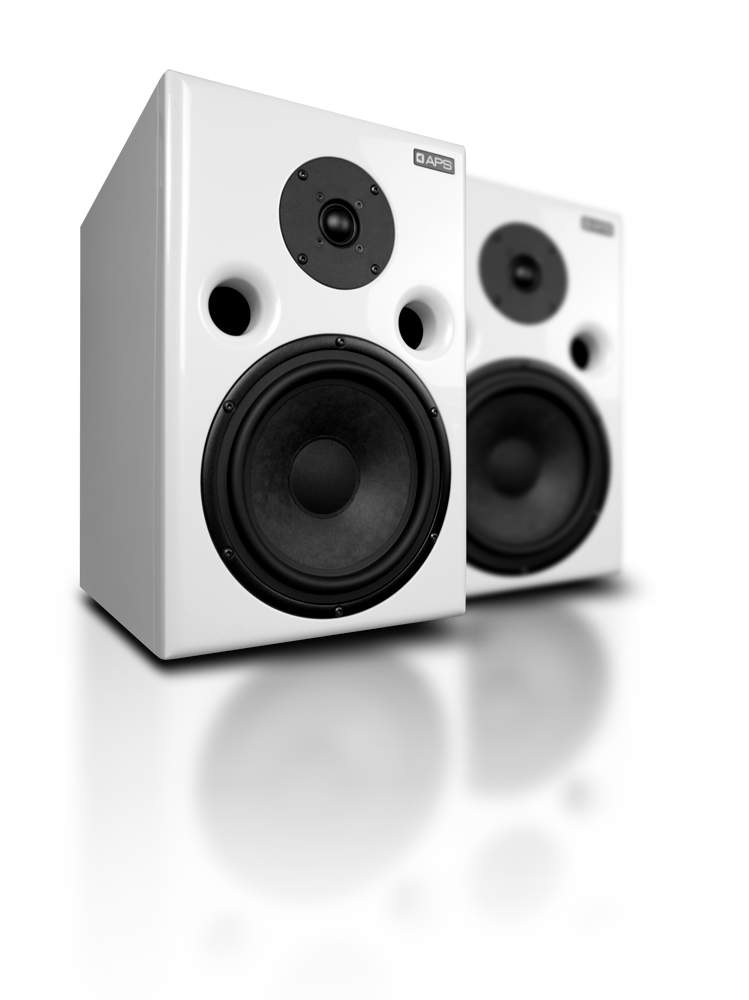

AEON in Diamant Weiss,  Installation bei einem Kunden!


AEON is a 2-way active High Definition near/mid field monitor.

Its Extended Frequency range and high SPL make it an ideal choice for uses such as:

  • recording studios,
  • broadcasting studios,
  • TV studios,
  • multimedia studios,
  • post production facilities,
  • mastering,
  • digital workstations,
  • home recording studios,
  • audio monitoring systems
  • home-cinema and Hi-Fi systems
It's designed with one thing in mind - to be the most transparent link between you and the sound. A comprehensive set of controls to fit a wide range of acoustic conditions. It's electronic protection systems make them virtually impossible to do damage to the tweeter or the boomer. The custom finishes make it the champion of aesthetics.

Typ
Beschreibung
AEON Titanium dome black-semi gloss 220V

2-way active high definition near/mid field monitor

AEON soft dome ferrari red finish, 220V

2-way active high definition near/mid field monitor



AEON soft dome - Weitere Farben

AEON is the first APS product designed from scratch with the use of our broad experience in designing studio monitors. AEON has been designed for experienced users who, apart from their own experience, use the best sound processing equipment in their work.

Its balanced, dynamic and full of detail sound, high quality of workmanship and attractive look in versions with special finish form a unique value, which quite rare at present in the pro-audio industry.

Thanks to the above mentioned qualities and the possibilities of precise regulation of the processing characteristics, AEON is excellent for "home studio" applications.

AEON is designed for stereo or multi-channel systems (5 +1 or 7+1 and larger) such as DOLBY, DTS, THX, etc.
Field Monitor Near-medium
Type

Active – two power amplifiers:

  • Tweeter p.a.: monolithic integrated circuit  TDA7294
  • Woofer p.a.: operates on 2SA1943/2SC5200
System Two-way
Crossover Frequency 1.5 kHz (slope: 24 dB/octave)
Dimensions: Height x Width x Depth 42 cm x 27 cm x 36 cm/ 16.6'' x 10.5'' x 14''
Free Field Frequency Response +/- 2 dB: 30 Hz - 30 kHz
SPL in Free Field @ 1m RMS: 108 dB
Peak: 116 dB
Weight 18 kg/39.6 lbs
Loudspeakers
Bass/Mid-Range Loudspeaker Ø 22 cm /8''
Diaphragm: cellulose, surround: rubber
Magnetically Shielded
Tweeter Loudspeaker Ø 2.5 cm/1'' in two versions:
  • Titianium dome
  • Fabric dome

Magnetically Shielded
Amplifiers
Bass/Mid-Range Power Amplifier 150 W RMS @ 4Ω
Tweeter Power Amplifier 70 W RMS @ 6Ω
Total Harmonic Distortions 0.005 % – PO = 5 W, f = 1 kHz
0.1 % max – PO = 0.1 up to 50 W, f = 20 Hz up to 20 kHz
Signal To Noise Ratio 103.5 dB – weighted by A curve
101 dB – in band of 20 Hz up to 20 kHz
Input Voltage Level for 100 dB SPL in Free Field @ 1m 0 dBu (i.e. 0.775 V) – calibrated regulators in 0 dBu, 0 dB positions
Calibrated Controls
Input Sensitivity Switch 30dBu, 22dBu, 15dBu, 9dBu, 4dBu, 0dBu, -3dBu, 10dBV
Bass Controller Level Switch -15dB, -12dB, -9dB, -6dB, -3dB, 0dB, 3dB, 6dB
Bass Controller Switch Position ON: bass-reflex with active filter
Position OFF: "clear" quick bass-reflex
Tweeter Loudspeaker Level Switch -5dB, -3dB, -1.5dB, -0.5dB, 0dB, 0.5dB, 1.5dB, 3dB
Inputs, Outputs
Input Two Types (common socket Combo):
  • XLR symmetrical (balanced)
  • TRS symmetrical (balanced) 6.3 mm

Input impedance 10 kΩ
„Loop Through” Output XLR symmetrical
Output impedance 100Ω
Protections
Tweeter Loudspeaker Protection Limiter (optical)
Bass/Mid-Range Loudspeaker Protection Limiter (optical)
Power Amplifiers Protections Interference, thermal, short circuit and over-current limiters



Amplification

AEON monitor is an active 2-way appliance equipped with two speakers (tweeter and woofer) and two independent power amplifiers for each speaker.

In the low frequecncies range the power amplifier with discrete elements (power transistors Toshiba 2SA1943/2SC5200) has been employed. Whereas, in filter systems the highest quality operational amplifiers BurrBrown OPA 2134 and OPA 134 have been used.

Instead of traditional potentiometers, eight-position hermetic switches have been introduced, ensuring high resistance to external factors and long-lasting, failure-free functioning.


 Protection

AEON monitor has several built in protection systems to reduce the risk of hazard or damage due to overloading as well as prevent against interferences.
The tweeter is protected by an electronic Tweeter Protection System limiting overdrive of its dedicated Power Amplifier. The Tweeter Power Amplifier is equipped with thermal, short circuit and over-current protections. There are also interference eliminators operating during switch-on and switch-off.

The woofer is similarly protected by its own Woofer Protection System. The woofer section is also equipped with its own thermal sensor and is protected by a specially designed Power Amplifier Controller.

The AEON loudspeakers are magnetically shielded, preventing interferences with TV screen, computer monitor screen (e.g. disturbance of colors) or other equipment standing nearby.

There is also the Ground Lift Switch preventing against ground loops.





AEON is the first and most popular APS product to date. Designed for experienced users such as sound engineers, music producers and musicians it has proven to be a very valuable tool, thanks to its balanced, dynamic and detailed sound that cuts through your mix with razor accuracy.

AEON takes full advantage of our extended experience in speaker design as well high quality of workmanship. It has some interesting features such as the unique bass controller. In most speakers this electronic extension of the lower range is hard wired. Here the user has the option to bypass it in order to obtain a slightly faster bass response, ideal for use with a sub woofer such as the SUB15.

Add to that attractive custom finishes and you get a great performer with a hard to beat price/quality ratio.

AEON is the perfect sidekick for all near/mid-field monitoring work, be it a pro recording studio, radio station or a "home studio" - a concept that has since its appearance become the dominant trend.

AEON is designed for stereo or multi-channel systems (5 +1 or 7+1 and larger) such as DOLBY, DTS, THX, etc.

Technical specifications

Near-medium field monitor

Type Active – two power amplifiers

Tweeter: monolithic integrated circuit TDA7294
Woofer: Woofer p.a.: operates on 2SA1943/2SC5200
System Two-way
Crossover Frequency 1.5 kHz (slope: 24 dB/octave)
Dimensions Height x Width x Depth
42 cm x 27 cm x 36 cm / 16.6" x 10.5" x 14"
Free Field Frequency Response ±2 dB: 30 Hz - 30 kHz
SPL in Free Field @ 1m RMS: 108 dB (single)
Peak: 116 dB (pair)
Weight 18 kg / 39.6 lbs

Loudspeakers

Bass/Mid-Range Loudspeaker Ø 22 cm / 8"
Diaphragm: cellulose, surround: rubber
Magnetically Shielded
Tweeter loudspeaker Ø 2.5 cm / 1" in two versions:
Titanium dome
Fabric dome

Magnetically Shielded

Amplifiers

Bass/Mid-Range Power Amplifier 150 W RMS @ 4Ω
Tweeter Power Amplifier 70 W RMS @ 6Ω
Total Harmonic Distortions 0.005 % – PO = 5 W, f = 1 kHz
0.1 % max – PO = 0.1 up to 50 W, f = 20 Hz up to 20 kHz
Signal to Noise Ratio 103.5 dB – weighted by A curve
101 dB – in band of 20 Hz up to 20 kHz
Input Voltage Level for 100 dB SPL in Free Field @ 1m 0 dBu (i.e. 0.775 V) – calibrated regulators in 0 dBu, 0 dB positions

Calibrated Controls

Input Sensitivity Switch 30dBu, 22dBu, 15dBu, 9dBu, 4dBu, 0dBu, -3dBu, -10dBV
Bass Controller Level Switch -15dB, -12dB, -9dB, -6dB, -3dB, 0dB, 3dB, 6dB
Bass Controller Switch Position ON: bass-reflex with active filter
Position OFF: "clear" quick bass-reflex
Tweeter Loudspeaker Level Switch -5dB, -3dB, -1.5dB, -0.5dB, 0dB, 0.5dB, 1.5dB, 3dB

Inputs, Outputs

Input Two Types (common socket Combo):
XLR symmetrical (balanced)
TRS symmetrical (balanced) 6.3 mm

Input Impedance 10 kΩ
„Loop Through” Output XLR symmetrical
Output Impedance 100Ω

Protections

Tweeter Loudspeaker Protection Limiter (optical)
Bass/Mid-Range Loudspeaker Protection Limiter (optical)
Power Amplifiers Protections Interference, thermal, short circuit and over-current limiters
